Vacuum filter


Krone Stainless Steel Vacuum filter - Housings in V4A

Krone Stainless Steel Vacuum filter

The airtight vacuum filter housings from Krone Filtertechnik are designed for installation in air and gas lines, and can be used as intake filters for vacuum pumps. They off er leaktightness up to a negative pressure level of -950 mbar and can be equipped with a range of diff erent filter elements, depending on how they are being used. It is important to note that the clean air connection is not installed facing down; as a result, dirt may get into the clean air opening when the filter is being replaced.

Vacuum filter | Made in Germany

We have successfully implemented the highest standards of quality and workmanship in production, so that our vacuum filter housings are characterised by the following quality features:

  • Made in Germany
  • V4A housing = suitable for the chemical, medical & food industries
  • Compact design, robust metal construction
  • nominal flow rate 0.7 - 12 m³/min, connections G3/4" to 4"
  • various filter elements 3 - 60 µm in paper, polyester or VA
  • Immediate availability from stock


Item number
Nominal flow
(m³/min)
d1
d2
d3
d4
h1
h2
h3
h4
t
Filter element
weight*
(kg)
KF-45009G034-V4A0,7G ¾"35 (1,38) 90 (3,54) 100 (3,94) 86 (3,39) 45 (1,77) 59 (2,32) 2,3 (0,09) 80 (3,15) KF-0075-PV-VA
KF-0075-VA-30
KF-0075-VA-60
0,5
KF-45021G114-V4A1,6G 1¼"50 (1,97) 125 (4,92) 135 (5,31) 116 (4,57) 68 (2,68) 81 (3,19) 19 (0,75) 85 (3,35) KF-1112-PV-VA KF-1112-VA-30 KF-1112-VA-60 1,0
KF-45037G114-V4A1,8G 1¼"50 (1,97) 162 (6,38) 176 (6,93) 170 (6,69) 108 (4,25) 98 (3,86) 20 (0,79) 140 (5,51)KF-1337-PV-VA KF-1337-VA-30 KF-1337-VA-601,9
KF-45124G200-V4A6,0G 2"84,5 (3,33)193 (7,6) 203 (7,8) 246 (9,69) 129 (5,08) 123 (4,84)6,5 (0,26) 240 (9,45)KF-15124-PV-VA KF-15124-VA-30 KF-15124-VA-603,2
KF-45124G212-V4A6,0G 2½"84,5 (3,33) 193 (7,6) 203 (7,8) 246 (9,69) 129 (5,08)123 (4,84) 6,5 (0,26) 240 (9,45)KF-15124-PV-VA KF-15124-VA-30 KF-15124-VA-603,2
KF-45138G400-V4A12,0G 4"123 (4,84) 268 (10,55) 272 (10,71) 263 (10,35) 147 (5,79) 197 (7,76)74 (2,91) 165 (6,5)KF-21138-PV-VA KF-21138-VA-30 KF-21138-VA-6012,5

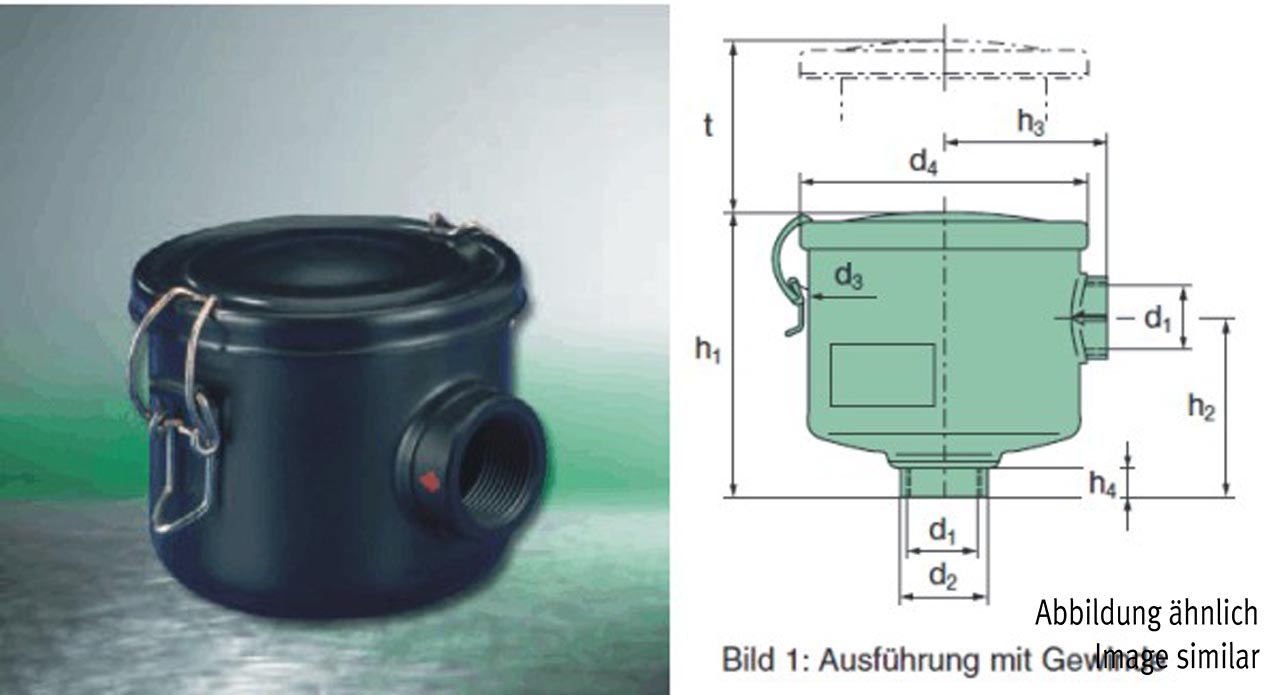

d1 until t - Dimensions in mm (Dimensions in inches)


Sign in or register for customized prices.
€4.60*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet PV VA 10 Micron
Filter medium: PolyesterEnd caps: VAF...
Art.-Nr.: KF-0075-PV-VA

Sign in or register for customized prices.
€9.35*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA
Art.-Nr.: KF-0075-VA-30

Sign in or register for customized prices.
€22.20*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA
Art.-Nr.: KF-0075-VA-60

Sign in or register for customized prices.
€11.38*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter element polyester
Art.-Nr.: KF-1112-PV

Sign in or register for customized prices.
€10.36*
Available in 10 workdays, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter element polyester
Art.-Nr.: KF-1112-PV-VA

Sign in or register for customized prices.
€11.80*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA
Art.-Nr.: KF-1112-VA-30

Sign in or register for customized prices.
€26.12*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA
Art.-Nr.: KF-1112-VA-60

Sign in or register for customized prices.
€18.52*
Available in 10 workdays, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€117.00*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter element polyester
Art.-Nr.: KF-1337-PV

Sign in or register for customized prices.
€13.50*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet, 10µm nominal
Art.-Nr.: KF-1337-PV-VA

Sign in or register for customized prices.
€23.00*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€60.00*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€53.50*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€124.00*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter element polyester
Art.-Nr.: KF-15124-PV

Sign in or register for customized prices.
€36.85*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet, 10µm nominal
Art.-Nr.: KF-15124-PV-VA

Sign in or register for customized prices.
€52.20*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA, 30µm nominal
Art.-Nr.: KF-15124-VA-30

Sign in or register for customized prices.
€72.50*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA, 60µm nominal
Art.-Nr.: KF-15124-VA-60

Sign in or register for customized prices.
€58.60*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€151.00*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Sign in or register for customized prices.
€41.64*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet, 10µm nominal
country of origin: IT (EU)HS-code: 84...
Art.-Nr.: KF-21138-PV-VA

Sign in or register for customized prices.
€72.73*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1

Air filter-Elemet VA, 30µm nominal
Art.-Nr.: KF-21138-VA-30

Sign in or register for customized prices.
€89.82*
Available, plus delivery time 1-3 business days

Minimum order quantity: 1
